We, Padmavati Industries are leading Measuring Pin Gauge manufacturers and suppliers in Pune. We Specializes in offering high-precision loose pins and sets. Our gauges are designed to be too precise, durable and easy to use. Our gauges can also guarantee proper GO/NO-GO checking and aid in the steady and consistent quality control in different sectors. We specialize in offering high calibration, reliable, and easy-to-use measurement solutions that would continue to ensure quality manufacturing standards and enhance total inspection efficiency.

Types of Measuring Pin Gauge

We are top Measuring Pin Gauge manufacturers in Pune, offering a variety of gauges for different industrial applications.

Based on Material

  • Steel Pin Gauges: Mostly applied in day-to-day inspection duties. They are cost-effective and reliable in terms of accuracy in frequent industrial applications.
  • Carbide Measuring Pin Gauge: Exceptionally hard and wear resistant. Ideal for high life and long durability requirements.
  • Ceramic Pin Gauges: Guarantees high levels of corrosion resistance and stability. Suitable for non-magnetic and rust-free applications.

Based on Tolerance and Precision

  • Master Pin Gauges: Provide the utmost level of accuracy and are used as references for calibration and critical measurements.
  • Regular Pin Gauges: Offer high accuracy for routine checks. Commonly used in general quality control and machining.
  • Plus & Minus Tolerance Sets: Consist of pins slightly larger and smaller than nominal size. Used to verify holes within tolerance ranges.

Based on Specific Use

  • Single Pin Gauges: Provided in one-size measurements individually. Ideal for verifying specific dimensions.

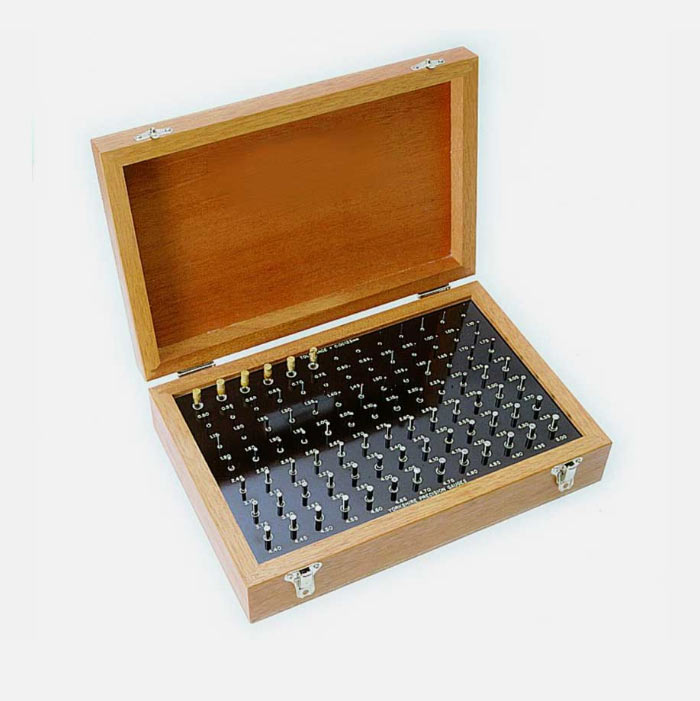

  • Pin Gauge Sets: Assortments of pin sizes in one kit. Useful for checking various hole sizes quickly with precision.
  • Plug Gauges: Used to check internal diameters of holes. Provide a basic GO/NO-GO test for conformity of size.

Technical Specifications of Measuring Pin Gauge

As Measuring Pin Gauge suppliers in Pune we have added here a sheet of specifications for these gauges.

SpecificationDetails
Measuring Range0.10 mm to 30.00 mm (custom ranges available)
Tolerance Options±0.001 mm, ±0.002 mm, ±0.0005 mm (for high-precision applications)
Hardness (Steel Pins)58 – 62 HRC
Hardness (Carbide Pins)88 – 92 HRA
Material OptionsEN 31 Hardened Steel, Tungsten Carbide, Ceramic
Diameter Step Increments0.01 mm standard; optional 0.005 mm, 0.02 mm
Gage Classes AvailableClass ZZ, Z, Y, X, XX
Surface FinishLapped finish for high accuracy and low friction
Roundness AccuracyUp to 0.0005 mm depending on gage class
CylindricityControlled within tight limits for consistent readings
Material Grade (Steel)High-carbon chrome alloy steel (EN 31 or equivalent)
Thermal StabilityOptimized to reduce measurement variation due to temperature changes
Packaging OptionsIndividual protective tubes, wooden/ABS storage box, or full set case
Compliance StandardsIS:11103-1984, ANSI/ASME B89.1.5, DIN standards (as required)

Benefits of Measuring Pin Gauge

We are top Measuring Pin Gauge manufacturers in Pune and our instruments are beneficial in many ways as mentioned here.

  • High Measurement Accuracy: Provide precise readings ensuring holes are of required size to support proper fitting.
  • Reliable Quality Control: Facilitate rapid GO/NO-GO inspections to maintain consistent production quality.
  • Improved Product Performance: Ensure proper alignment and fitting of components, reducing malfunctions and enhancing durability.
  • Versatile Industrial Use: Adaptable for automotive, aerospace, medical, and machining industries to inspect precision components.
  • Easy and Error-Free Handling: Simple to use with clear identification, minimizing selection errors and improving inspection efficiency.

Applications of Measuring Pin Gauge

As Measuring Pin Gauge suppliers in Pune our instruments are highly demanded in industries for following applications.

  • Precision Hole and Feature Inspection
    Pin Gauges are measured in order to verify holes, slots and grooves precisely so as to ascertain that every feature is to the needed size and tolerance. They aid in the accuracy during the production process.
  • Fit and Assembly Validation
    They confirm that the parts such as shafts, pins, fasteners and gears are placed in the proper manner and do not need any problems during alignment in the assembly.
  • Quality Control & Acceptance Testing
    They allow rapid GO/NO-GO inspections to be taken on whether or not a part is within the required dimensions, assists in keeping production quality constant.
  • Calibration of Measuring Instruments
    Pin Gauges are also applied to calibrate measuring instruments like micrometres, calipers and dial indicators all to ensure that all measuring instruments are accurate and reliable.
  • Specialized Industrial Applications
    They help in checking engine components, analysis of gear sizes, distance between holes and wear in maintenance, and help in maintaining accuracy and the service life of equipment.

Why to Choose Us?

  • Precision You Can Trust:
    We offer Measuring Pin Gauges and solutions that are designed in precise standards so that all of the tools will provide quality consistency in accuracy and reliability in performance on your quality checks.
  • Industry-Ready Expertise:
    Having long experience in the automotive, aerospace, medical, and general manufacturing sectors, we realize the specific demands of every sector and provide tools that address the requirements of real-world precision.
  • Durable & User-Friendly Solutions:
    Measuring Pin Gauge manufacturers in Pune design our gauges to be durable using high quality materials and comfortable design that makes them simple to operate and service and relies on during both routine maintenance and important measurements.

Padmavati Industries is a well-known Measuring Pin Gauge manufacturers and suppliers in Pune. Our focus is to provide our customers with high quality Measuring Pin Gauges which are precise, durable as well as easy to use. Our equipment assists industries to uphold high standards of quality, part fitting and to enhance the overall product performance. Our solutions are based on reliability and accuracy, respond to a variety of industrial requirements and ensure the smooth inspection process, which makes us a reliable partner in precision measurements. Reach out to us for more details.
